| Category | Detail |
|---|---|
| Cell | SAMSUNG SDI 50E |
| Configuration | 13S8P |
| Nominal Voltage | 47.2V |
| Capacity | 39.2Ah |
| Energy | 1850Wh |
| Standard Charge Current | 20A (0.5C) |
| Max. Charge Current | 40A (1.0C) |
| Cont. Discharge Current | 40A (0.2C) |
| Max. Discharge Current | 80A (2.0C) |
| Operating Temperature | Charte : 0℃ ~ 45℃ Discharge : -20℃ ~ 60℃ |
| Pack Size | 232 * 360 * 100mm |
| Pack Weight (Abt.) | 10.9kg |
| Communication | CAN2.0 |
| Cycle Life | 1000(@80%) |
| Category | Item Name | Remarks |
|---|---|---|
| ① | DISPLAY | - |
| ② | TOP CASE | - |
| ③ | CONNECTOR | - |
| ④ | BOTTOM CASE | Enclosure Structure Applied |
| ⑤ | Water-based Paste | Electrical Conductivity 6µS/cm |
| ⑥ | Explosion Venting Layer | Leakage & Flow Prevention (Gas Permeable) |
| ⑦ | CELL MODULE | 13S8P |
| ⑧ | BMS | - |
| ⑨ | Waterproof Fabric | Leakage Prevention |

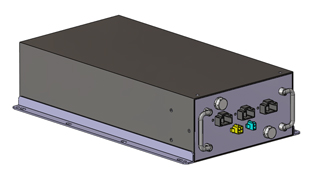

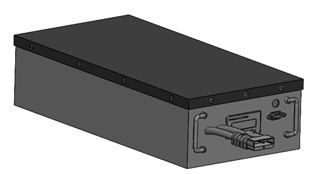

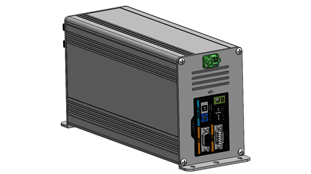

| Model | SE-CV24-C1991-AL-1 | SE-CV48-C1850-AP-1 | SE-CV24-C630-AP-1 |
|---|---|---|---|
| Image |
|
|
|
| Size | 209 x 336 x 100mm | 200 x 400 x 100mm | 307 x 96 x 143mm |
| Weight | ≒ 10.5kg | ≒ 12.4kg | ≒ 5.1kg |
| Cell Configuration | 7S12P | 13S8P | 7S5P |
| Cell Type | Cylindrical cell (Samsung SDI 21700) | Cylindrical cell (LG 21700_M50LT) | |
| Nominal Voltage/Capacity | 25.4V 58.8Ah | 47.2V 39.2Ah | 25.2V 25Ah |
| Total Energy Capacity | 1.991kWh | 1.850kWh | 630Wh |
| Storage Temperature | Charging: 0℃ ~ 50℃ Discharging: -20℃ ~ 60℃ |
Charging: 0℃ ~ 50℃ Discharging: -20℃ ~ 55℃ |
Charging: 0℃ ~ 45℃ Discharging: -20℃ ~ 60℃ |
| Thermal Runaway Prevention Solution | Impregnation Type | ||
| Applications | Robots : manufacturing, logistics, medical, agriculture, service Personal mobility devices / Portable ESS (leisure, welding, medical devices, etc.) |
||
| Customizable via various customer requirements | |||
