Standard Safety Battery (Mobility / Power Bank)

Applying impregnation-cooling thermal-runaway prevention technology to KS R 6100 standard battery → standard safety battery development & deployment with cost competitiveness, compatibility, and scalability

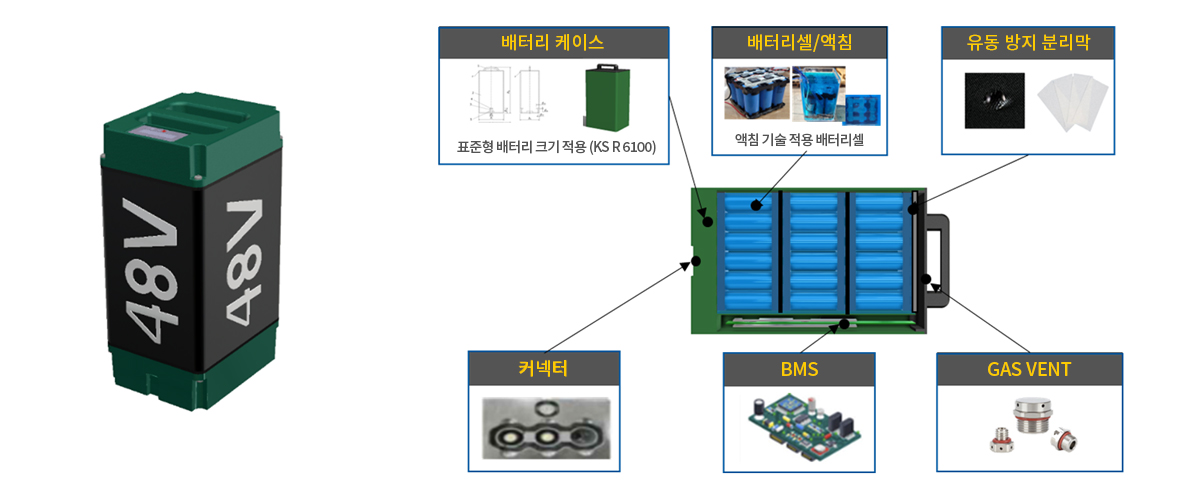

Paste-Impregnation Standard Safety Battery

1. Development of a safety battery system considering the specifications of the KS R 6100-1 battery standard, enabling thermal runaway prevention and delay
2. Application of an impregnation structure through the use of a sealed enclosure.

swipeLeft and right draggable

구분	품명	비고
①	TOP CASE	-
②	DISPLAY	3인치
③	TOP MID CASE	수밀 구조 (오링)
④	GAS VENT	가스불출 (수분 누액 방지)
⑤	CELL MODULE	LGES M50LT
⑥	MAIN CASE	-
⑦	BOTTOM MID (Harness extraction)	수밀 구조 (오링)
⑧	BMS	14S6P / 48V CAN 2.0
⑨	CONNECTOR	KS R 6100 규격
⑩	BOTTOM CASE	-

swipeLeft and right draggable

Model	SE-S6148-C1480-AL-1/ SE-S6148-C1480-AP-1	SE-S6148-C1707-1	SE-S6148-C1480-AP-1
Size	170 x 135 x 310mm
Weight	≒ 10.5kg	≒ 12.2kg	≒ 9.9kg
Cell configuration	14S6P	14S7P	14S6P
Cell type	원통형 셀 (LG 21700_M50LT)
Nominal voltage/capacity	51.66V 28.8A	51.66V 33Ah	51.66V 28.8Ah
total energy capacity	1.48kWh	1.707kWh	1.48kWh
Storage Temperature	Charging: 0℃ ~ 50℃ Discharging: -20℃ ~ 60℃	Charging: 0℃ ~ 50℃ Discharging: -20℃ ~ 55℃	Charging: 0℃ ~ 50℃ Discharging: -20℃ ~ 60℃
Thermal Runaway Prevention Solution	Immersion Type / Impregnation Type	-	Impregnation Type
